The interaction plots are another useful tool to visualize the relationship between a categorical (factor) variable with a continuous variable. It helps you conduct a two-way ANOVA (Analysis Of VAriance) study based on the common principle of hypothesis testing which will be covered in another tutorial. As a rule of thumb, if the interaction plot results in parallel lines, it implies that there is no interaction between the variables. However, if they intersect or converge, there is a strong chance that there is an interaction. In this article, we are going to use two datasets called “ToothGrowth” and “birthwt” for finding the interaction between different variables.

**Installing the Libraries**

We will kick off by installing the libraries:

# Install Packages

install.packages(“tidyverse”)

install.packages(“caret”)

install.packages(“leaps”)

library(tidyverse)

library(caret)

library(leaps)

**Invoking the ToothGrowth Dataset**

The “ToothGrowth” dataset provides a data about the changes in odontoblasts lengths (cells responsible for tooth growth in guinea pigs) based on different doses of Vitamin C (VC) or Orange Juice (OJ). Here, we are going to check for the interaction of the supplements and doses on the length of cells. Here is a brief overview of how the code and data looks like:

#Invoking ToothGrowth Dataset and Checking out the Data

data(ToothGrowth)

head(ToothGrowth)

**Output: **

**Interaction Plots for ToothGrowth Dataset**

Before heading towards the plotting part of the tutorial, let’s look at the syntax of the interaction.plot() function for better data presentation:

# Checking out Interaction Plot Syntax

interaction.plot(x.factor, trace.factor, response, fun,

xlab,ylab,

trace.label,

col,

lty,lwd)

Here:

x.factor = the factor that is assigned to x-axis

trace.factor = another factor that makes up the traces

response = response variable

fun = descriptive statistics like mean or median for hypothesis testing

xlab, ylab = labels of x-and y-axes

trace.label = Label of the Legends

col = color for the plotted values

lty = type of lines

lwd = width of lines

The syntax does look complex but there is nothing to worry about when you see it action.

Let’s proceed ahead with the interaction plot:

#Interaction Plot

interaction.plot(x.factor = ToothGrowth$dose,

trace.factor = ToothGrowth$supp,

response = ToothGrowth$len,

fun = mean, xlab=”Dose”, ylab=”Tooth Length”,

trace.label=”Supplements”,

col=c(“pink”,”skyblue”),

lty=2, lwd=3)

**Output: **

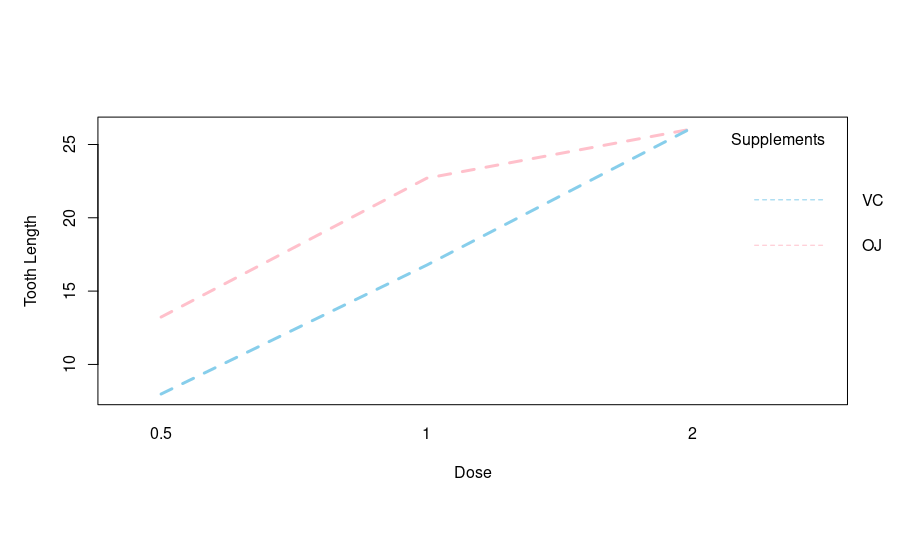

Based on the output, there is a clear interaction between the tooth length and dosage of both VC and OJ supplements. Let’s try this tool on another dataset.

**Interaction Plots Using “birthwt” Dataset**

For using the birthwt dataset, we are going to invoke MASS library

#Another Dataset from MASS Library

library(MASS)

Now, let’s load the dataset”

#Loading Dataset

data(“birthwt”)

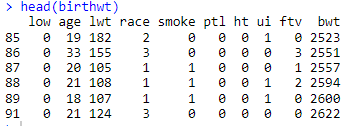

The “birthwt” dataset provide data about different risk factors that are associated with low birth weight in infants. It does have a number of variables as can be evident by head() function:

Here, I am going to explore the following three two-way interactions:

- Effect of race and smoking habits on infant birth weight
- Effect of hypertension history and smoking habits on infant birth weight
- Effect of uterine irritability and smoking habits on infant birth weight

**Testing Interaction 1**

Here for the sake of simplifying the code, I have used with() that makes the code easier to interpret and read.

# Interaction b/w race & Smoking Habit on Birth Weight

with (birthwt, {

interaction.plot(x.factor = race,

trace.factor = smoke,

response = bwt,

fun = mean, xlab=”Race”,ylab=”Birth Weight”,

trace.label=”Smoking”,

col=c(“pink”,”skyblue”),

lty=2, lwd=4)

})

**Output: **

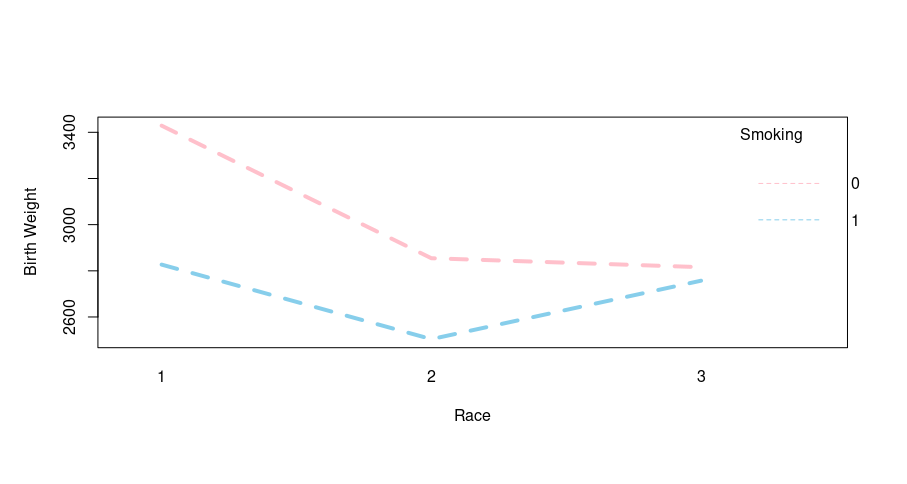

Let’s interpret the output, the mother’s race (1=white, 2=black, 3=other) shows some interaction as the plot converges. Let’s proceed head with interaction 2

**Testing Interaction 2**

For checking the interaction hypertension history and smoking habits on infant birth weight, we use the following code:

with (birthwt, {

interaction.plot(x.factor = ht,

trace.factor = smoke,

response = bwt,

fun = mean, xlab=”Hypertension”,ylab=”Birth Weight”,

trace.label=”Smoking”,

col=c(“pink”,”skyblue”),

lty=2, lwd=4)

})

**Output: **

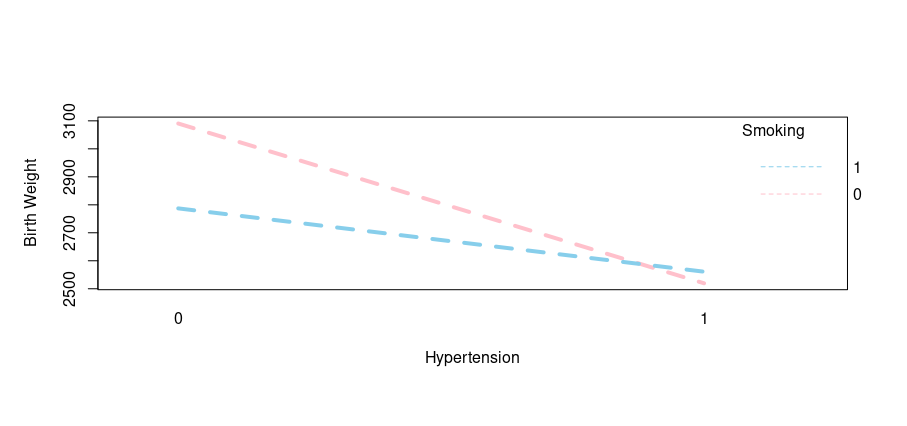

As evident from the output, here is another example of interaction as the hypertension history along with smoking habits can impact infant birth weight. Let’s move ahead with our final interaction.

**Testing Interaction 3**

Here we are going to check the interaction of uterine irritability and smoking habits on infant birth weight:

# Interaction of Uterine Irritability & Smoking Habit on Birth Weight

with (birthwt, {

interaction.plot(x.factor = ui,

trace.factor = smoke,

response = bwt,

fun = mean, xlab=”Uterine Irritability”,ylab=”Birth Weight”,

trace.label=”Smoking”,

col=c(“pink”,”skyblue”),

lty=2, lwd=4)

})

**Output: **

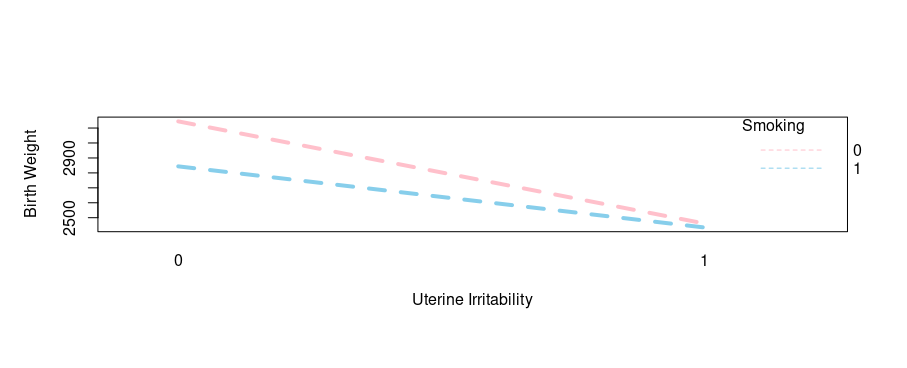

Wow, another interaction witnessed! You can literally choose other risks factors and practice on your own as well.

**Concluding Remarks**

Interaction plots allows us to find the interaction of different variables in a dataset on a response variable (response variable = cell length or infant birth weight). The plots also provide a visual representation of the complex ANOVA calculations that uses statistics like F values or Pr(>F) that is somewhat difficult for data novices to understand and interpret.
